Driveline Seal Installer

What is it?

            - 3D printed from PETG with a specifically designed infill to take hits and forces normally exerted during a seal installation.

            - Each installer is carefully designed around specific seals with end stops to keep the seal at the correct depth during installation.

           -Currently only offering in BLACK

KEEPS THE GUESS WORK OUT OF INSTALLS!

Seal Part #'s,

            - Front IFS Output seal installer is for

                   Toyota Part # (90311-47027) -Driver/Passenger Output Seal

                    Fits 1995-2022 Toyota Trucks/SUVs

            - Transfer Case Output Seal installers are for

                    Toyota Part # (90312-23001) -Front/Rear Yoke seal

                    Fits 1988-2022 Toyota Trucks/SUVs

                    Toyota Part # (90311-41012) -Front Output Seal

                     Fits 1988-2009 Toyota Trucks/SUVs

                    Toyota Part # (90311-41020) -Rear Output Seal

                     Fits 1988-2022 Toyota Trucks/SUVs

           - Rear Axle Shaft seal installer is for

                    Toyota Part # (90310-50006) -Driver/Passenger axle

                    Fits 1984-2006 Toyota Live Axle Trucks/SUVs

What is included?

Full Kit includes-

            -Front IFS output seal installer

            -Front Transfer case output seal installer

            -Rear Transfer case output seal installer

            -Transfer case yoke seal installer

            -Rear Axle shaft seal installer

Individual Kits include-

          -Respective Seal installing tool

Tech info-

The front axle seal installer was made to be used with a long 3/8" extension. Hammer extension and drive seal in until an audible hard stop. Remove the installer and confirm that the seal is seated evenly all around.

The transfer case seal installer kit includes three tools: the Yoke, Front, and Rear outputs.

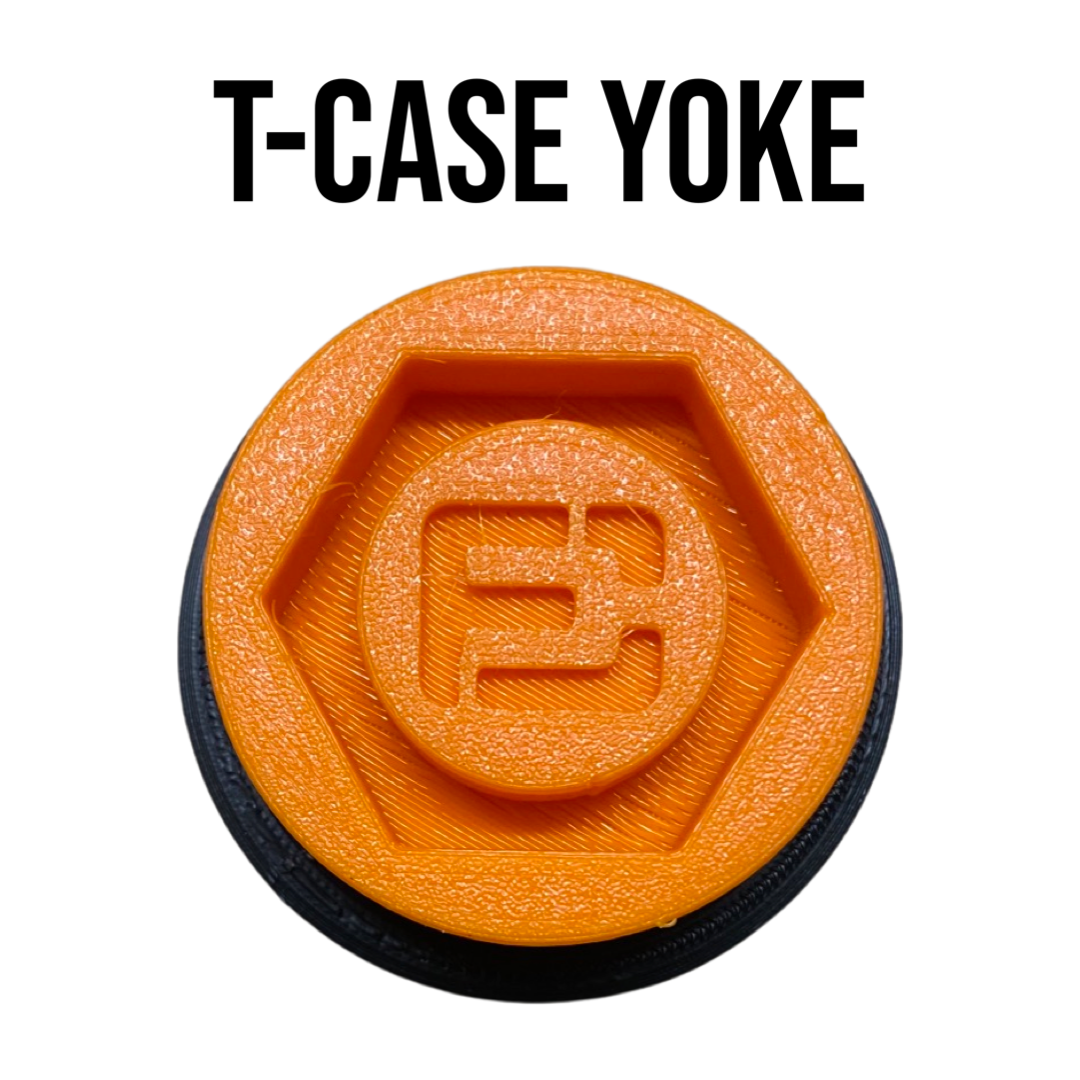

The yoke tool has a 1/2" square drive with a stepped ring to hold the yoke seal. Drive the seal until the tool is flush with the face of the yoke.

The front output seal installer is designed specifically for the front seal; the inner and outer rings are made to sit flush and wrap around the output shaft. using the same 24mm socket to drive the seal in until an audible hard stop. remove the installer and ensure depth.

The Rear Output installer was specifically designed for the rear output seal and installs the same way as the front.

The rear axle shaft seal installer was made to capture the seal and be used with a 3/8" extension to drive the seal in with the supplied (Knuckle Saver) and hammer until an audible hard stop.

Disclaimers:

This is a 3D-printed tool designed as a cost-effective and easy way for hobbyists to maintain their vehicles. This PETG filament can take a good amount of abuse, but it is not a replacement for Aluminum or steel tools and should be treated as such.

I have personally coated these tools in axle grease and then sprayed them down with brake clean to test their ability for chemical resistance. I can confirm it held up to brake clean on 3 separate uses, but it is not guaranteed to withstand more than that. Recommend cleaning with soap and water to ensure colors and material composition do not degrade.

Hit with a hammer at your own risk! always use the supplied Knuckle savers to keep from damaging tools and 3/8" extensions.

Warranty Info: The seal installation tools are protected under our 2 Year replacement guarantee. We will send a new one, no questions asked, if the tool breaks. we will not replace the installer if it is damaged from chemical cleaning supplies such as brake clean or parts cleaner.
